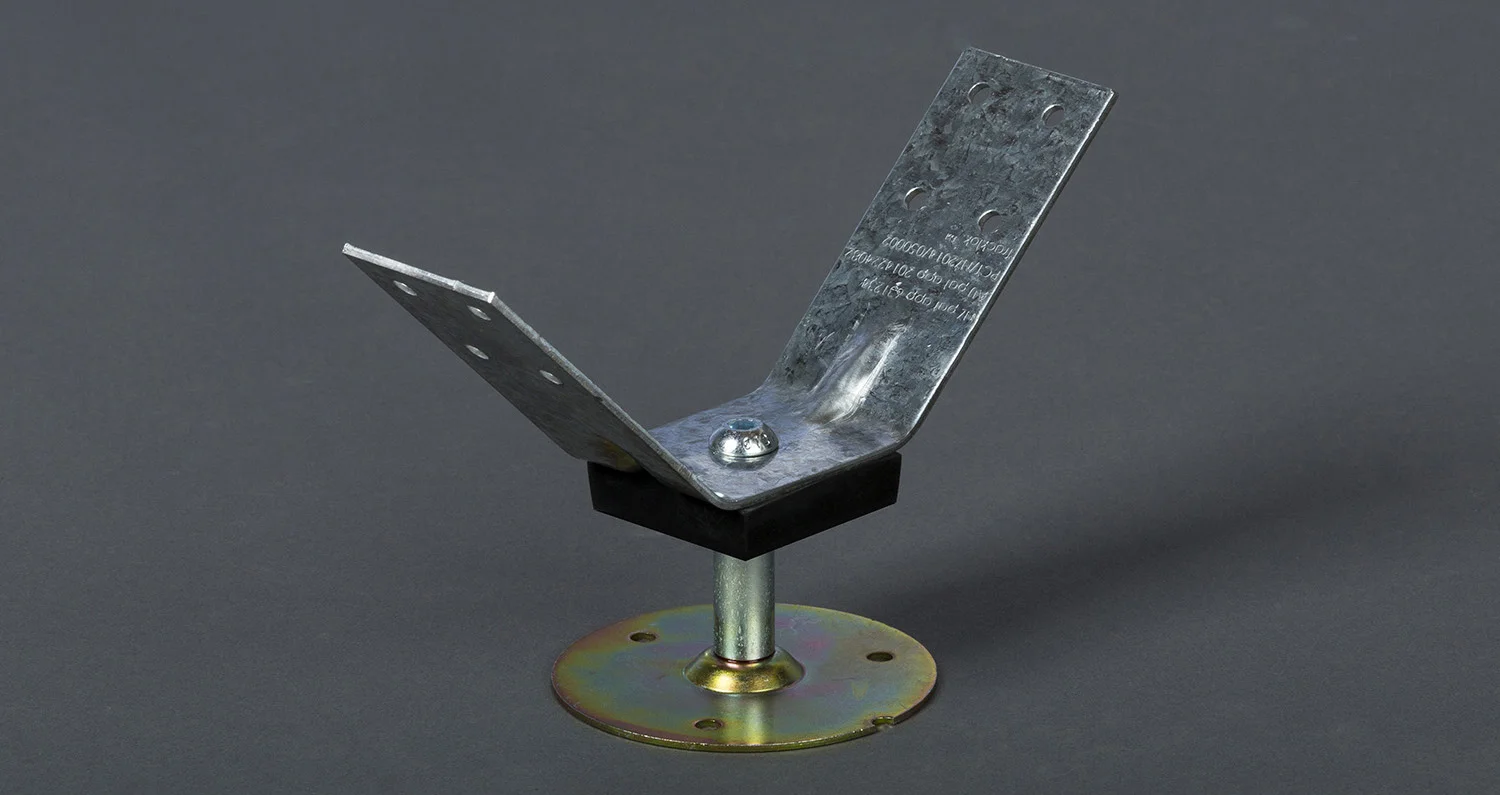

Timber framed walls and timber top plates (note timber top plate must be minimum 90 x 45mm) present a unique bracing challenge due to the inconsistency of this organic material. TRACKLOK® TIMBA is a uniquely designed solution, allowing the appropriate bracing while ensuring maximum connection to timber using minimum 10 gauge 35mm wood screws. Locator notch provides perfect placement every time. Set out charts provide clear guidance for placement. Utilised in IL2, IL3 and IL4 buildings.
Stock Code: SPT-10T

DOWNLOADS

CLICK HERE TO DOWNLOAD THE TRACKLOK® TIMBA PLAN & ELEVATION DRAWINGS.

CLICK HERE TO DOWNLOAD THE TRACKLOK® TIMBA DWG FILE.

CLICK HERE TO DOWNLOAD THE TRACKLOK® TIMBA COMPONENT DETAIL RFA FILE.

SEE THE DOWNLOADS PAGE FOR THE REVIT COMPONENT PDF FILE FOR ALL PRODUCTS.
