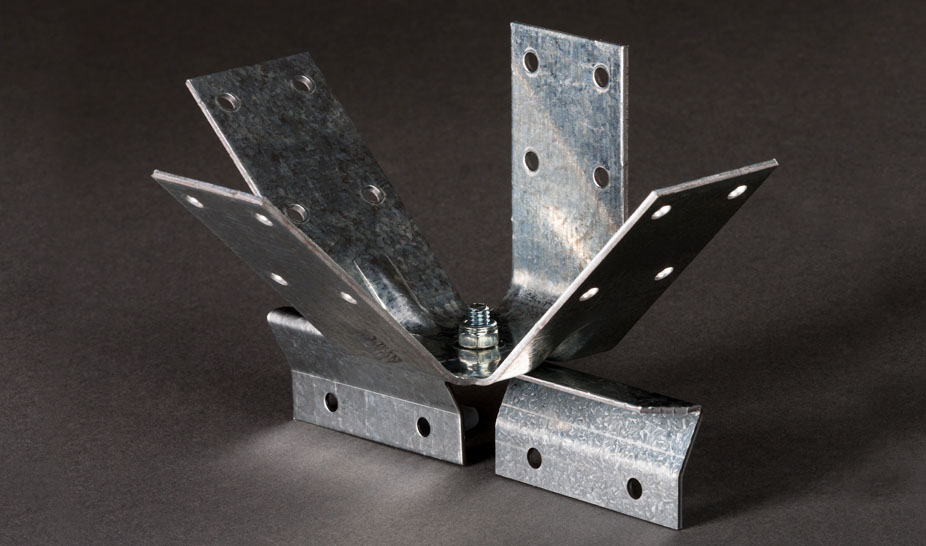

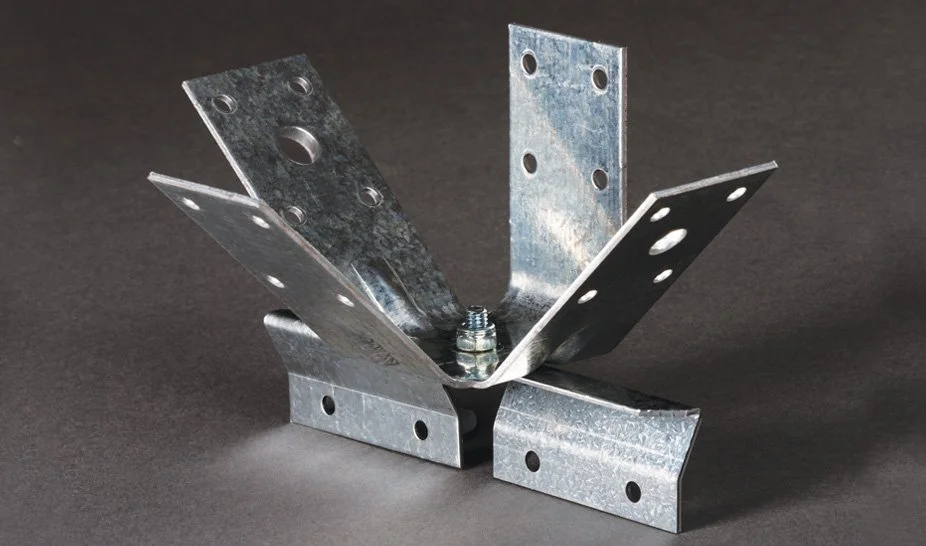

Designed and tested to provide a consistent 280kg/f of bracing capacity to two-way grid ceiling systems, including drywall grid systems. A simple click fit and screw off process dramatically reduces time required to complete back bracing. Plenum height chart provide guidance on steel stud BMT required for bracing arms. Features the ability to rotate the unit though 360 degrees minimizing service clashes.

Stock code: GRD-10

DOWNLOADS

CLICK HERE TO DOWNLOAD THE GRIDLOK® QS COMPARISON.

CLICK HERE TO DOWNLOAD THE GRIDLOK® DWG FILE.

CLICK HERE TO DOWNLOAD THE GRIDLOK® PDF FILE.

CLICK HERE TO DOWNLOAD THE GRIDLOK® RVT FILE.

CLICK HERE TO DOWNLOAD THE GRIDLOK® 2D COMPONENT FAMILY RFA FILE.

CLICK HERE TO DOWNLOAD THE GRIDLOK® ISOMETRIC VIEW PDF FILE.
