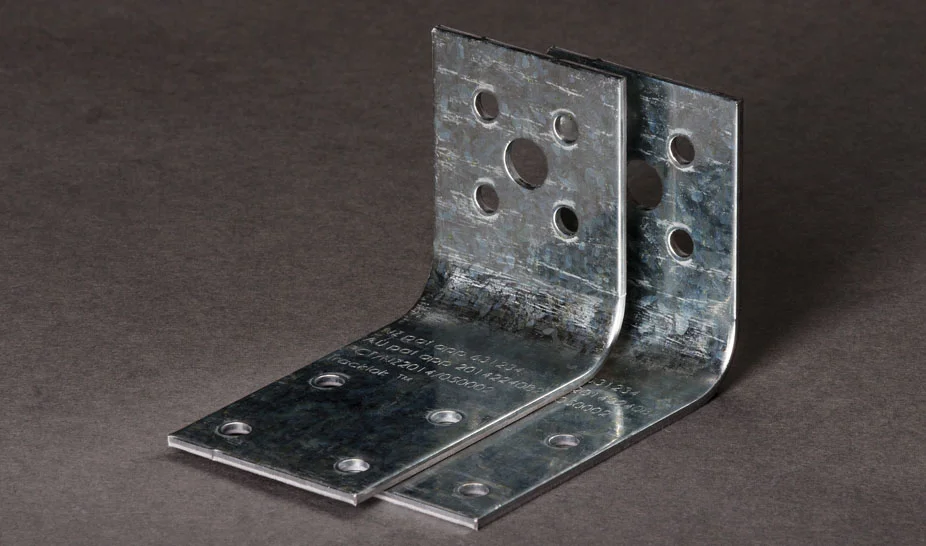

BRIDGING CONNECTOR 90

Designed and tested to provide a consistent and quantifiable connection capacity. Used in conjunction with steel stud to bridge purlins allowing parallel and perpendicular bracing connections.
Stock Code: BC-90 (sold in pairs)

DOWNLOADS

CLICK HERE TO DOWNLOAD THE TRACKLOK® BC90 DWG FILE.

CLICK HERE TO DOWNLOAD THE TRACKLOK® BC90 RFA FILE.

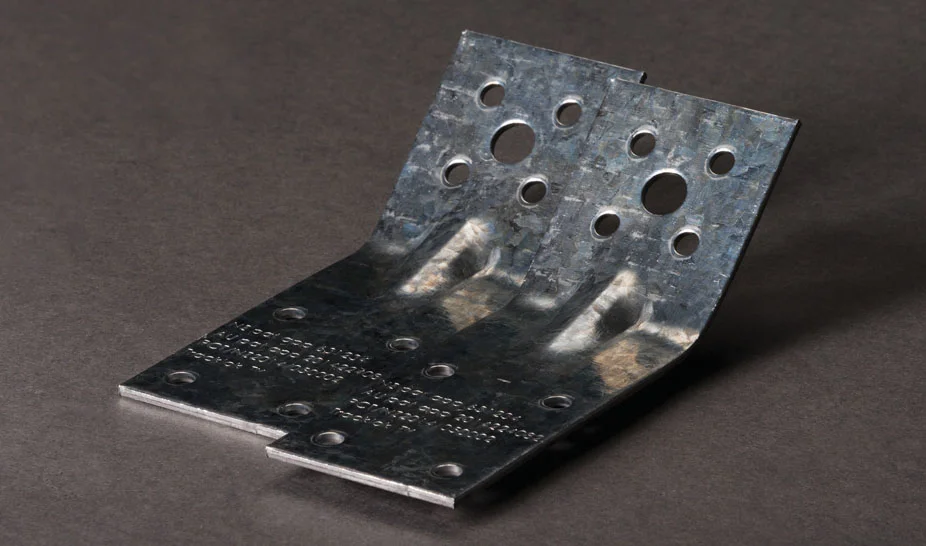

BULKHEAD & BRIDGING CONNECTOR 45

Designed and tested to provide a consistent and quantifiable connection capacity. Used in conjunction with steel stud to brace bulkheads, our height vs centres chart provides install guidance. Also, used to assist in the bridging of services.
Stock Code: BC-45 (sold in pairs)

DOWNLOADS

CLICK HERE TO DOWNLOAD THE TRACKLOK® BC45 DWG FILE.

CLICK HERE TO DOWNLOAD THE TRACKLOK® BC45 RFA FILE.

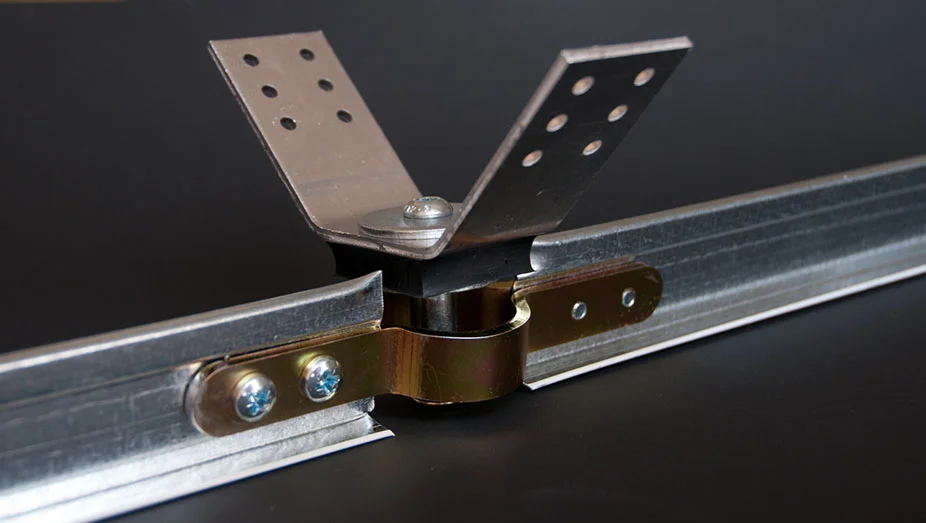

On occasion, a partition wall or a glazing line placement may coincide with the main runners or nogs of two-way grid. In this instance there would be no way for a TRACKLOK® to pass through, with 10mm of clearance from the ceiling. GAPLOK™ allows you to take a 40mm section out of the grid, clamp GAPLOK™ to bridge the gap and reinstate the grid’s structural integrity and allow the clearance required.
Stock Code: GGP-10

DOWNLOADS

CLICK HERE TO DOWNLOAD THE GAPLOK™ SPEC SHEET.

CLICK HERE TO DOWNLOAD THE GAPLOK™ PLAN & ELEVATION DRAWINGS.

CLICK HERE TO DOWNLOAD THE GAPLOK™ DWG FILES.

CLICK HERE TO DOWNLOAD THE GAPLOK™ COMPONENT DETAIL RFA FILE.™
